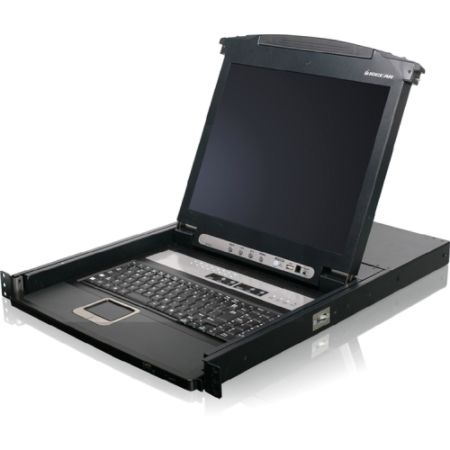

Iogear 16-Port 17" LCD Combo KVM Switch Item # 597111
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
Description
IOGEAR's GCL1816 is an integrated LCD console with 16-port KVM (keyboard, video, and mouse) switch that offers secure access to 16 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding/retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.The GCL1816 supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816 supports USB peripheral devices to be used with the attached computers. A single GCL1816 can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers controlled from a single keyboard, monitor, and mouse console.
Product Details
| Item # | 597111 |
| OfficeMax # | 24184687 |
| Manufacturer # | CM6348 |
| diagonal screen size | 17 in. |
| Screen Mode | SXGA |
| KVM Switch | No |
| height | 1.8 in. |
| width | 19 in. |
| depth | 25 in. |
| Product Name | GCL1816 Rackmount LCD |
| manufacturer | Iogear, Inc |
| weight | 29.03 lb |
| brand name | IOGEAR |
| USB | Yes |
| Number of USB Ports | 1 |
| Number of Computers Supported | 16 |
| screen resolution | 1280 x 1024 |
| warranty length | 3-year limited |
| Daisy Chain | Yes |
| model name | GCL1816 |
| Display Screen Type | LCD |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Images
See More:
Overview
IOGEAR's GCL1816 is an integrated LCD console with 16 port KVM (keyboard, video, and mouse) switch that offers secure access to 16 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.
The GCL1816 supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816 supports USB peripheral devices to be used with the attached computers. A single GCL1816 can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled from a single keyboard, monitor, and mouse console.
Benefits:
- Increases space, productivity, and provides as an energy cost savings solution
- It contributes to a greener environment by reducing the amount of waste generated by multiple components
- An easy / efficient way to organize and streamline a growing or expanding server operation
*Cascade with other IOGEAR KVM's: GCS1808's or GCS1716's.
Features
- Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
- 1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display
- Adjustable depth to fit different sizes of racks
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys
- External USB mouse port for convenience
- External USB or PS/2 with VGA Console port
- USB media port support for attached USB computers (system upgrades, etc)1
- Cascade up to 2 levels - control up to 256 computers from a single console2
- Security - 2 level password protection for OSD
- DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully Supports DDC2B
Interactive Demo
- LCD Display Controls
- USB Port
- Firmware Upgrade Port
- Touchpad
- Port Display & Control
- Ground
- Power
- VGA Out
- VGA In
| Image/Features |
|---|
LCD Display ControlsUSB PortFirmware Upgrade PortTouchpadPort Display & Control |
GroundGrounding
PowerVGA Out(Console Port)
VGA In(Computer input port)
|
Click to Start
How it Works
In the Box
- 1 x 16-Port LCD KVM1 x PS/2 KVM Cable
- 1 x USB KVM Cable
- 1 x Console Cable
- 1 x Cascade Cable
- 1 x Firmware Upgrade Cable
- 1 x Rack Mount Kit (Short and Long L Brackets)
- 1 x Grounding Wire
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Warranty Card
Requirements
Computers:
- VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
- PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
- 1 Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals
- 2 Cascade with IGOEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
